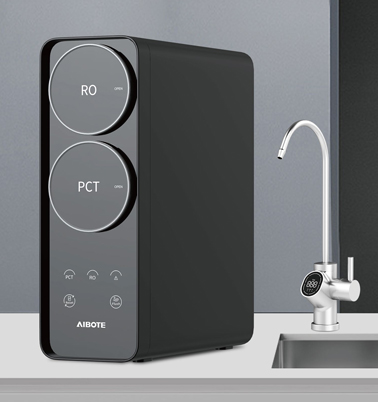

1901 Series Under-Sink RO Water Purifier
Slim modular tankless RO series with integrated water manifold
OEM Quotation
Contact for Price
OEM Procurement
- MOQ
- 1 PCS
Supply Capabilities
- ✓Logo, color, packaging and manual customization
- ✓Export packaging and labeling solutions
- ✓Export documents and cross-border shipping coordination
Contact us for any unlisted specifications and order details.
1901 Series Under-Sink RO Water Purifier. The catalogue shows the following model(s) in this product/series: AW-RB40 / AW-RB27 / AW-RB35 / AW-RB01 / AW-RB31 / AW-RB07 / AW-RB30 / AW-RB10 / AW-RB11 / AW-RB13 / AW-RB08 / AW-RB05 / AW-RB26 / AW-RB04 / AW-RB25 / AW-RB23 / AW-RB32 / AW-RB38 / AW-RB03 / AW-RB18 / AW-RB20 / AW-RB34 / AW-RB06 / AW-RB21 / AW-RB09.
Key Features
- Slim body with modular structure
- High flow with tankless design
- Integrated water manifold module with no water leakage
- Composite filter cartridge for easy replacement
- High-precision filtration with long-lasting water-saving RO membrane
- Long service life of filter cartridge with life reminder
- Low operating noise
Specifications
- RO Flow Available: 400 / 600 / 800 / 1000 / 1200 GPD
- Power: 400G: 60W; 600G: 80W; 800G: 100W; 1000G: 130W; 1200G: 150W
- Voltage: 400–1000G: 24V; 1200G: 36V
- Purified Water Flow Rate: 400G: 1.04L/min; 600G: 1.56L/min; 800G: 2.08L/min; 1000G: 2.60L/min; 1200G: 3.12L/min
- RO Permeate : Drain: 2:1
- First Filter / Service Life: PCT (PP+Carbon+Post Carbon) / 9–15 months
- Second Filter / Service Life: RO (Reverse Osmosis) / 30–48 months
- Input Water Pressure: 0.1–0.4MPa
- Inlet Water Temperature: 5–38°C
- Ambient Temperature: 4–40°C
- Product Size: 400–800G short version: 392×135×393mm; 800–1200G long version: 460×135×393mm
- Carton Size: 400–800G short version: 695×192×465mm; 800–1200G long version: 815×192×495mm
Catalogue source: AIBOTE 2024.09, PDF page 7-9.
Engineering Datasheet
Technical Specifications
Specifications below support overseas sourcing evaluation. Unlisted data is subject to confirmation.
| 01 / Performance & Filtration | |
|---|---|
| Purified Water Flow | 400G:1.04L/min; 600G:1.56; 800G:2.08; 1000G:2.60; 1200G:3.12 |
| Filtration Stages | PCT 9-15m + RO 30-48m |
| Inlet Water Pressure | 0.1-0.4MPa |
| 02 / Electrical & Operating Conditions | |
| Voltage / Frequency | 400-1000G:24V; 1200G:36V |
| Rated Power | 60/80/100/130/150W |
| Operating Water Temperature | Inlet 5-38C; ambient 4-40C |
| 03 / Dimensions & Packaging | |
| Product Dimensions | Short 392x135x393mm; Long 460x135x393mm |
| Units per Carton | 1 PCS |
Labels, packaging, manuals and product configurations can be customized according to order volume, target market and brand requirements.
Packaging
Catalogue carton size: 400–800G short version: 695×192×465mm; 800–1200G long version: 815×192×495mm.
Applications
Designed for under-sink installation.
Packaging & Service
China warehouse consolidation, inspection, sorting, LCL packing and cross-border shipping coordination are available.
