Q5 Series Commercial Floor-Standing Water Dispenser
Floor-standing commercial drinking-water system for offices and multi-user environments, available as RO hot/cold, RO hot/ambient and UF hot/ambient configurations.
Compliance & Certifications
To be confirmed
OEM Quotation
Contact for Price
OEM Procurement
- MOQ
- 1 PCS
- Lead Time
- To be confirmed
- Sample Lead Time
- To be confirmed
- Shipping Origin
- Shunde, Guangdong, China
Supply Capabilities
- ✓Logo, color, packaging and manual customization
- ✓Export packaging and labeling solutions
- ✓Export documents and cross-border shipping coordination
Delivery & Logistics
- Trade Terms
- To be confirmed
- Shipping Methods
- To be confirmed
- Logistics Route
- To be confirmed
Final price, lead time, certifications and customization are subject to the formal quotation.

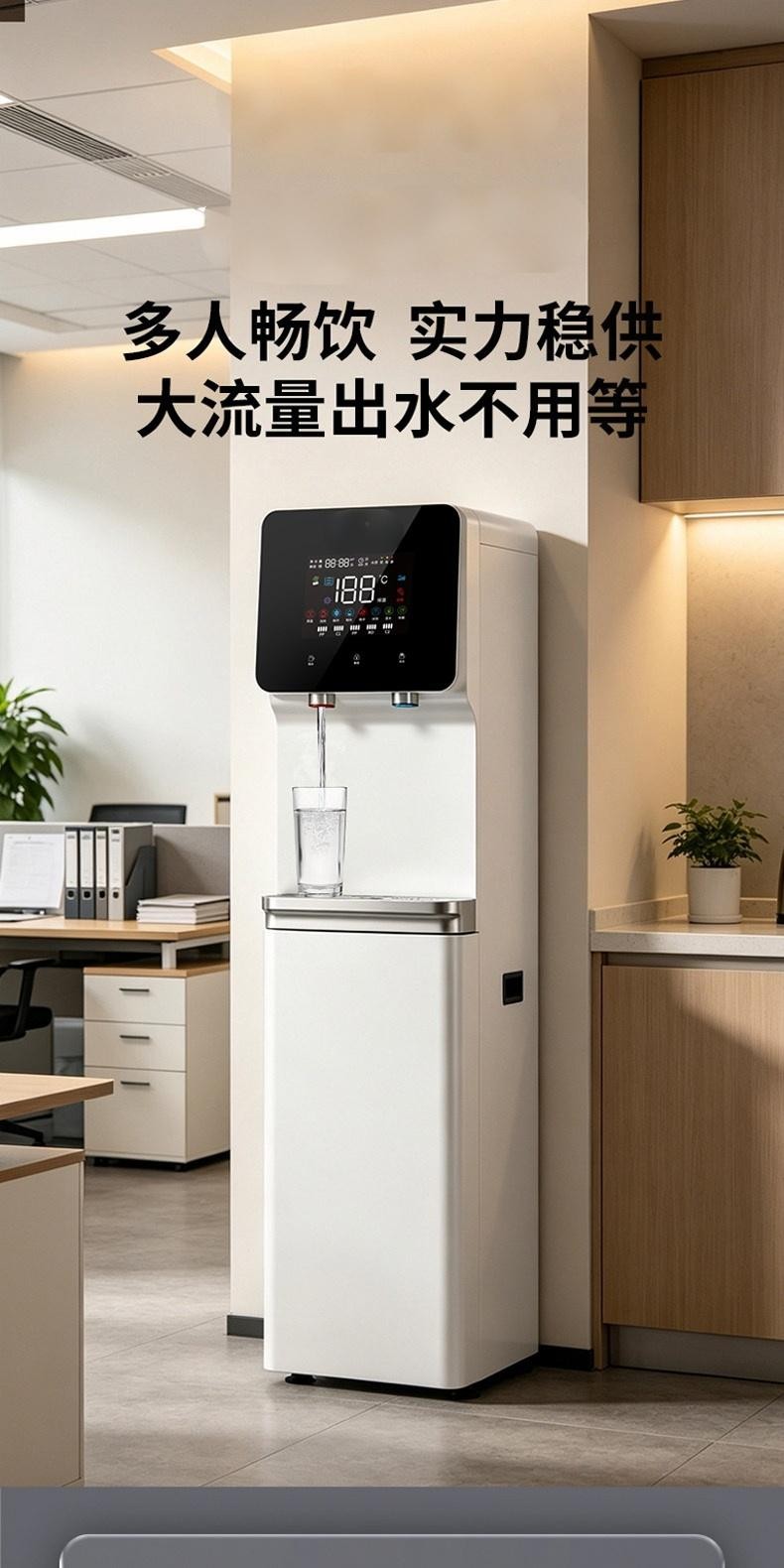

Q5 Series is a light-commercial floor-standing drinking-water platform for offices, schools and multi-user environments, available in three configurations.
Available Configurations
- RO hot/cold: 100G RO, hot + chilled water
- RO hot/ambient: 100G RO, hot + ambient water
- UF hot/ambient: M6 UF, hot + ambient water
Main Functions
- UV treatment
- 304 stainless-steel hot tank

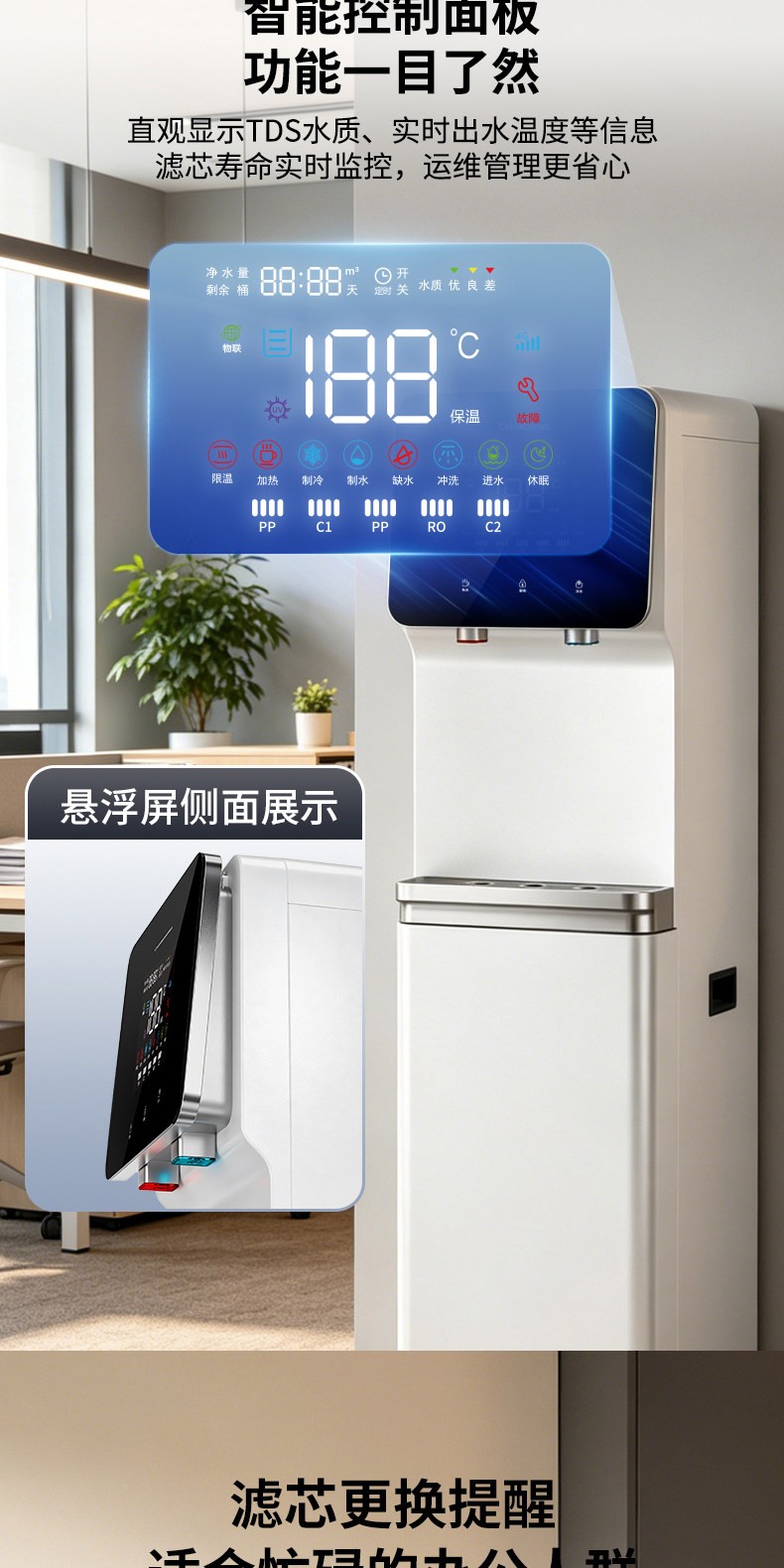

- Filter-life reminder, TDS display and filter flushing
- Hot-water child lock, low-water reminder and timer functions
Catalogue Data
- Hot tank: 5 / 7 / 10 L
- Water tank: 10 L
- RO purification flow: 0.26 L/min; UF flow: 2 L/min
- Heating capacity: 15 / 20 / 30 L/h at ≥90°C
- Rated total: RO 4000 L; UF 1500 L
- Power supply: 220V~50Hz

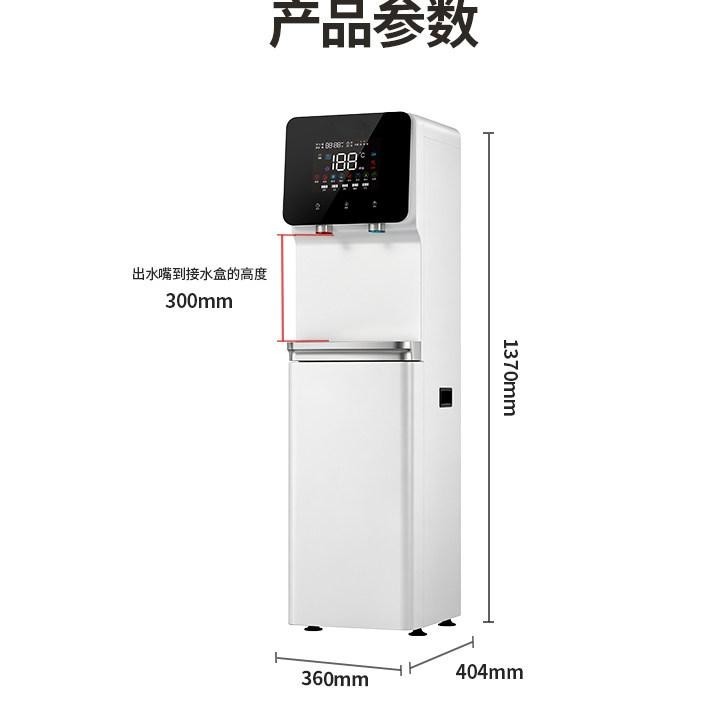

- Dimensions: 404 × 360 × 1370 mm
- The parameter table lists 50–100 users; actual application depends on configuration and usage pattern.
Key Features
- RO hot/cold, RO hot/ambient or UF hot/ambient
- Floor-standing multi-user design
- UV treatment
- 304 stainless-steel hot tank
- Filter-life reminder
- TDS display
- Automatic filter flushing
- Hot-water child lock
- Low-water reminder
- Dual touch-controlled outlets
Engineering Datasheet
Technical Specifications
Specifications below support overseas sourcing evaluation. Unlisted data is subject to confirmation.
| 01 / Performance & Filtration | |
|---|---|
| Purified Water Flow | RO 0.26 L/min; UF 2 L/min; hot 15/20/30 L/h |
| Filtration Accuracy | To be confirmed |
| Filtration Stages | RO: PP + C1 + RO + C2; UF: PP + C1 + UF + C2 |
| Inlet Water Pressure | To be confirmed |
| Feed Water Requirements | To be confirmed |
| RO Membrane Brand | To be confirmed |
| 02 / Electrical & Operating Conditions | |
| Voltage / Frequency | 220 V ~ 50 Hz |
| Rated Power | RO hot/cold 1150 W; RO hot/ambient 1100 W; UF hot/ambient 1050 W |
| Operating Water Temperature | Hot ≥90°C; chilled option ≤15°C |
| Certifications | To be confirmed |
| 03 / Dimensions & Packaging | |
| Product Dimensions | 404 × 360 × 1370 mm |
| Units per Carton | 1 |
| Carton Size | To be confirmed |
| Carton Volume | To be confirmed |
| Gross Weight | To be confirmed |
| Net Weight | To be confirmed |
Labels, packaging, manuals and product configurations can be customized according to order volume, target market and brand requirements.
Delivery Details
Sample Lead TimeTo be confirmed
Lead TimeTo be confirmed
Shipping OriginShunde, Guangdong, China
Trade TermsTo be confirmed
Shipping MethodsTo be confirmed
Logistics RouteTo be confirmed
Applications
For offices, schools, meeting areas, small-to-medium workplaces and other multi-user drinking-water points.
Packaging & Service
China warehouse consolidation, inspection, sorting, LCL packing and cross-border shipping coordination are available.
